1. 实验环境

在实验本节代码前，准备环境一个ubuntu物理机或者虚拟机，下载并使能交叉编译工具链，然后编译好内核源码，参考《编译内核镜像并在云实验室开发板运行》。

2. 开始第一个内核字符驱动编写和编译运行

在你要写代码的目录下用touch新建两个文件，一个源码文件，一个Makefile。如下：

~/linux_driver/ 03_spinlock$ touch 03_spinlock_virtchardev.c
~/linux_driver/ 03_spinlock$ touch Makefile
~/linux_driver/ 03_spinlock$ vim 03_spinlock_virtchardev.c

将下面的代码复制到03_spinlock_virtchardev.c, 如下：

/*
* Copyright 2024 NXP
*
* SPDX-License-Identifier: BSD-3-Clause
*/
#include <linux/module.h>
#include <linux/types.h>
#include <linux/init.h>
#include <linux/cdev.h>

MODULE_LICENSE("GPL");
MODULE_AUTHOR("Cloud Lab");

#define BUF_LEN      0x1000
#define VIRTCHARDEV_NAME "virtdev"

struct virtchardev
{
        dev_t virtdev_id;
        struct cdev virtdev_cdev;
        struct class *class;
        struct device *device;
        int virtdev_major;
        int virtdev_minor;
        spinlock_t lock;

        struct cdev cdev;
        unsigned char mem[BUF_LEN];

};

struct virtchardev *virtdev;


int virtdev_open(struct inode *inode, struct file *filp)
{
        filp->private_data = virtdev;

        return 0;
}

int virtdev_release(struct inode *inode, struct file *filp)
{
        return 0;
}

static ssize_t virtdev_read(struct file *filp, char __user *buf,
                        size_t size, loff_t *ppos)
{
        unsigned long p =  *ppos;
        unsigned int count = size;
        int ret = 0;
        struct virtchardev *dev = filp->private_data;

        if (p >= BUF_LEN)
        {
        printk("*ppos = %d\n", p);
        return count ? -ENXIO : 0;
        }

        if (count > BUF_LEN - p)
        {
        count = BUF_LEN - p;
        }

        if (copy_to_user(buf, (void*)(dev->mem + p), count))
        {
        ret =  - EFAULT;
        }
        else
        {
        *ppos += count;
        ret = count;

        printk(KERN_INFO "read %d bytes(s) from %d\n", count, p);
        }

        return ret;
}

static ssize_t virtdev_write(struct file *filp, const char __user   *buf,
                        size_t size, loff_t *ppos)
{
        unsigned long p =  *ppos;
        unsigned int count = size;
        int ret = 0;
        void *kbuf = NULL;
        struct virtchardev *dev = filp->private_data;

        kbuf = kvmalloc(size, GFP_KERNEL);
        memset(kbuf, 0, count);
        if (copy_from_user(kbuf, buf, count) != 0)
        {
                ret =  - EFAULT;
        }
        spin_lock(&dev->lock);
        strscpy(dev->mem, kbuf, (count > BUF_LEN ? BUF_LEN : count));
        ret = count;
        printk("write bytes: %zu\n", count);
        spin_unlock(&dev->lock);
        return ret;
}

static const struct file_operations virtdev_fops =
{
        .owner = THIS_MODULE,
        .read = virtdev_read,
        .write = virtdev_write,
        .open = virtdev_open,
        .release = virtdev_release,
};


int virtdev_init(void)
{
        virtdev = kmalloc(sizeof(struct virtchardev), GFP_KERNEL);
        memset(virtdev, 0, sizeof(struct virtchardev));

        spin_lock_init(&virtdev->lock);
        alloc_chrdev_region(&virtdev->virtdev_id, 0, 1,
                                VIRTCHARDEV_NAME );
        virtdev->virtdev_major = MAJOR(virtdev->virtdev_id);

        cdev_init(&virtdev->virtdev_cdev, &virtdev_fops);

        virtdev->virtdev_cdev.owner = THIS_MODULE;
        virtdev->virtdev_cdev.ops = &virtdev_fops;

        cdev_add(&virtdev->virtdev_cdev, virtdev->virtdev_id, 1);

        virtdev->class = class_create(THIS_MODULE, VIRTCHARDEV_NAME);

        device_create(virtdev->class, NULL, virtdev->virtdev_id,
                        NULL, VIRTCHARDEV_NAME);


        return 0;
}

void virtdev_exit(void)
{
        cdev_del(&virtdev->virtdev_cdev);
        unregister_chrdev_region(virtdev->virtdev_id, 1);

        device_destroy(virtdev->class, virtdev->virtdev_id);
        class_destroy(virtdev->class);

        kfree(virtdev);

}

module_init(virtdev_init);
module_exit(virtdev_exit); ~

编写Makefile：

PWD    := $(shell pwd)
KERDIR := /home/test/kernel_build/linux-imx
obj-m += 03_spinlock_virtchardev.o

all:
        make -C $(KERDIR) M=$(PWD) modules
clean:
        make -C $(KERDIR) M=$(PWD) clean

3. 编译

~/linux_driver/03_spinlock$ export CROSS_COMPILE=~/toolchain/arm-gnu-toolchain-13.3.rel1-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu-
~/linux_driver/03_spinlock$ export ARCH=arm64
~/linux_driver/03_spinlock$ make

编译完成后当前目录会有如下文件：

~/linux_driver/03_spinlock $ ls
Makefile  modules.order  Module.symvers  03_spinlock_virtchardev.c  03_spinlock_virtchardev.ko  03_spinlock_virtchardev.mod  03_spinlock_virtchardev.mod.c  03_spinlock_virtchardev.mod.o  03_spinlock_virtchardev.o

4. 替换云实验室开发板镜像并重新启动

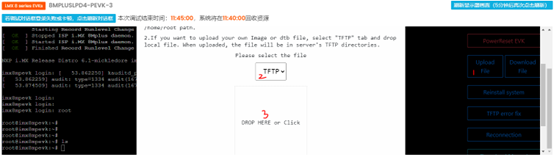

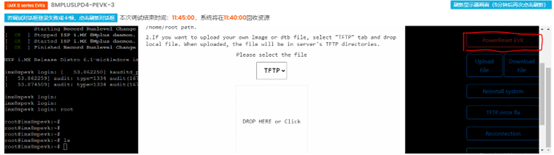

根据《编译内核镜像并在云实验室开发板运行》替换dtb和image，这里仍然需要这一步，因为内核模块在加载时需要和内核编译版本相匹配。上传并替换云实验室板子的dtb和Image，依次点击用户网页端下面1，2，3的位置，在点击位置2时，选择TFTP，点击3后选择文件~/kernel_build/linux-imx/arch/arm64/boot/dts/freescale/imx8mp-evk.dtb和~/kernel_build/linux-imx/arch/arm64/boot/Image。

上传成功后，点击下方PowerReset EVK按钮，重启开发板。

至此，开发板开始运行自己修改编译的linux镜像。

5. 上传自己编译的字符驱动模块

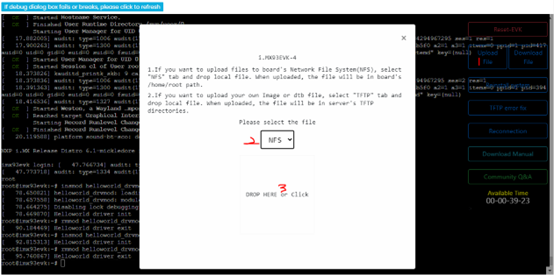

在4中编译出了第一个内核驱动程序virtchardev.ko，通过一次点击下图中的1，2，3位置，然后切换到本地对应的文件目录上传。

6. 运行上面编译出的驱动模块

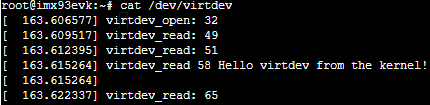

执行insmod加载模块，然后执行rmmod卸载模块，log如下，可以看到当加载时，打印出了virtdev_init里的log, 当卸载时打印出了virtdev_exit里的log，执行加载卸载可以多次执行，也没有问题。

在云实验室开发板上实验spinlock
