本用例来展示Linux进程task struct结构里的进程状态、优先级、调度策略等参数。在调试问题的过程中，进程状态参数可以快速确定进程是处于运行态，可中断的睡眠状态、不可中断的睡眠状态还是已停止等，例如如果发现进程处于不可中断睡眠状态，可能是由于等待某些硬件资源或I/O操作，这有助于定位系统瓶颈或潜在的死锁问题。优先级参数在调试中可以快速识别出关键进程，从而重点关注其运行情况和资源占用。调度策略参数可以用来区分进程类型，从而调整调度策略，分析进程的调度行为是否符合预期。也可以调度策略和优先级同时使用来优化系统的实时性。

1. 在实验本节代码前，准备环境一个ubuntu物理机或者虚拟机，下载并使能交叉编译工具链，然后编译好内核源码，参考《编译内核镜像并在云实验室开发板运行》

2. Linux kernel进程信息的示例代码：

在你要写代码的目录下用touch新建两个文件，一个源码文件，一个Makefile。如下

~/linux_driver/07_process_state$ touch 07_process_state.c

~/linux_driver/07_process_state$ touch Makefile

~/linux_driver/07_process_state$ vim 07_process_state.c

将下面的代码复制到07_process_state.c, 如下：

/*
* Copyright 2025 NXP
* SPDX-License-Identifier: GPL-2.0+
*/

1 #include <linux/module.h>

2 #include <linux/types.h>

3 #include <linux/init.h>

4 #include <linux/cdev.h>

6 MODULE_LICENSE("GPL");

7 MODULE_AUTHOR("Cloud Lab");

9 #define BUF_LEN 0x1000

10 #define VIRTCHARDEV_NAME "virtdev"

12 struct virtchardev

13 {

14 dev_t virtdev_id;

15 struct cdev virtdev_cdev;

16 struct class *class;

17 struct device *device;

18 int virtdev_major;

19 int virtdev_minor;

20 struct semaphore sema;

22 struct cdev cdev;

23 unsigned char mem[BUF_LEN];

25 };

27 struct virtchardev *virtdev;

30 int virtdev_open(struct inode *inode, struct file *filp)

31 {

32 filp->private_data = virtdev;

34 down_interruptible(&virtdev->sema);

35 return 0;

36 }

38 int virtdev_release(struct inode *inode, struct file *filp)

39 {

40 struct virtchardev *dev = filp->private_data;

42 up(&dev->sema);

43 return 0;

44 }

46 static ssize_t virtdev_read(struct file *filp, char __user *buf,

47 size_t size, loff_t *ppos)

48 {

49 unsigned long p = *ppos;

50 unsigned int count = size;

51 int ret = 0;

52 struct virtchardev *dev = filp->private_data;

54 if (p >= BUF_LEN)

55 {

56 printk("*ppos = %d\n", p);

57 return count ? -ENXIO : 0;

58 }

60 if (count > BUF_LEN - p)

61 {

62 count = BUF_LEN - p;

63 }

64 if (copy_to_user(buf, (void*)(dev->mem + p), count))

65 {

66 ret = - EFAULT;

67 }

68 else

69 {

70 *ppos += count;

71 ret = count;

73 printk(KERN_INFO "read %d bytes(s) from %d\n", count, p);

74 }

75 printk("Process state,priority,schedule policy info::\n"

76 "module : %s\n"

77 "process name : %s\n"

78 "state, 0 Run, 1 Sleep, 2 D, 4 T Stopped : %d\n"

79 "priority : %d\n"

80 "static priority : %d\n"

81 "normal priority : %d\n"

82 "scheduler priority: 0 Normal, 5 Idle : %d\n"

83 "Run on CPU : %d\n",

84 VIRTCHARDEV_NAME,

85 current->comm,

86 current->__state,

87 current->prio,

88 current->static_prio,

89 current->normal_prio,

90 current->policy,

91 raw_smp_processor_id()

92 );

94 return ret;

95 }

97 static ssize_t virtdev_write(struct file *filp, const char __user *buf,

98 size_t size, loff_t *ppos)

99 {

100 unsigned long p = *ppos;

101 unsigned int count = size;

102 int ret = 0;

103 void *kbuf = NULL;

104 struct virtchardev *dev = filp->private_data;

105

106 kbuf = kvmalloc(size, GFP_KERNEL);

107 memset(kbuf, 0, count);

108 if (copy_from_user(kbuf, buf, count) != 0){

109 ret = - EFAULT;

110 }

111 strscpy(dev->mem, kbuf, (count > BUF_LEN ? BUF_LEN : count));

112 ret = count;

113 printk("write bytes: %zu\n", count);

114 printk("Process state,priority,schedule policy info::\n"

115 "module : %s\n"

116 "process name : %s\n"

117 "state, 0 Run, 1 Sleep, 2 D, 4 T Stopped : %d\n"

118 "priority : %d\n"

119 "static priority : %d\n"

120 "normal priority : %d\n"

121 "scheduler priority: 0 Normal, 5 Idle : %d\n"

122 "Run on CPU : %d\n",

123 VIRTCHARDEV_NAME,

124 current->comm,

125 current->__state,

126 current->prio,

127 current->static_prio,

128 current->normal_prio,

129 current->policy,

130 raw_smp_processor_id()

131 );

132

133 return ret;

134 }

135

136 static const struct file_operations virtdev_fops =

137 {

138 .owner = THIS_MODULE,

139 .read = virtdev_read,

140 .write = virtdev_write,

141 .open = virtdev_open,

142 .release = virtdev_release,

143 };

144

145

146 int virtdev_init(void)

147 {

148 virtdev = kmalloc(sizeof(struct virtchardev), GFP_KERNEL);

149 memset(virtdev, 0, sizeof(struct virtchardev));

150 printk("%s %d\n", __func__, __LINE__);

151 sema_init(&virtdev->sema, 1);

152 alloc_chrdev_region(&virtdev->virtdev_id, 0, 1,

153 VIRTCHARDEV_NAME );

154 virtdev->virtdev_major = MAJOR(virtdev->virtdev_id);

155

156 cdev_init(&virtdev->virtdev_cdev, &virtdev_fops);

157

158 virtdev->virtdev_cdev.owner = THIS_MODULE;

159 virtdev->virtdev_cdev.ops = &virtdev_fops;

160

161 cdev_add(&virtdev->virtdev_cdev, virtdev->virtdev_id, 1);

162

163 printk("%s %d\n", __func__, __LINE__);

164 virtdev->class = class_create(/*THIS_MODULE,*/ VIRTCHARDEV_NAME);

165

166 device_create(virtdev->class, NULL, virtdev->virtdev_id,

167 NULL, VIRTCHARDEV_NAME);

168 printk("Process state,priority,schedule policy info::\n"

169 "module : %s\n"

170 "process name : %s\n"

171 "state, 0 Run, 1 Sleep, 2 D, 4 T Stopped : %d\n"

172 "priority : %d\n"

173 "static priority : %d\n"

174 "normal priority : %d\n"

175 "scheduler priority: 0 Normal, 5 Idle : %d\n"

176 "Run on CPU : %d\n",

177 VIRTCHARDEV_NAME,

178 current->comm,

179 current->__state,

180 current->prio,

181 current->static_prio,

182 current->normal_prio,

183 current->policy,

184 raw_smp_processor_id()

185 );

186

187 return 0;

188 }

189

190 void virtdev_exit(void)

191 {

192 cdev_del(&virtdev->virtdev_cdev);

193 unregister_chrdev_region(virtdev->virtdev_id, 1);

194

195 device_destroy(virtdev->class, virtdev->virtdev_id);

196 class_destroy(virtdev->class);

197

198 kfree(virtdev);

199

200 }

201

202 module_init(virtdev_init);

203 module_exit(virtdev_exit);

编写Makefile：

PWD := $(shell pwd)

KERDIR := /home/test/kernel_build/linux-imx

obj-m += 07_process_state.o

all:

make -C $(KERDIR) M=$(PWD) modules

clean:

make -C $(KERDIR) M=$(PWD) clean

3. 编译：

~/linux_driver/07_process_state$ export CROSS_COMPILE=~/toolchain/arm-gnu-toolchain-13.3.rel1-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu-

~/linux_driver/07_process_state$ export ARCH=arm64

~/linux_driver/07_process_state$ make

编译完成后当前目录会有如下文件

~/linux_driver/07_process_state$ ls

07_process_state.ko

4. 替换云实验室开发板镜像并重新启动

根据《编译内核镜像并在云实验室开发板运行》替换dtb和image，这里仍然需要这一步，因为内核模块在加载时需要和内核编译版本相匹配

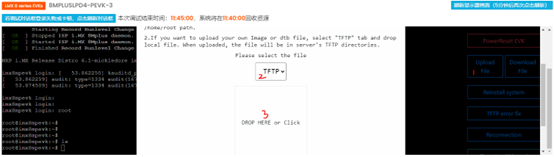

上传并替换云实验室板子的dtb和Image，依次点击用户网页端下面1，2，3的位置，在点击位置2时，选择TFTP，点击3后选择文件~/kernel_build/linux-imx/arch/arm64/boot/dts/freescale/imx8mp-evk.dtb和~/kernel_build/linux-imx/arch/arm64/boot/Image

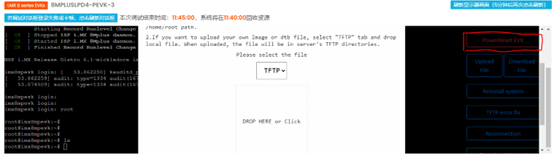

上传成功后，点击下方PowerReset EVK按钮，重启开发板。

至此，开发板开始运行自己修改编译的linux镜像。

5. 上传自己编译的字符驱动模块

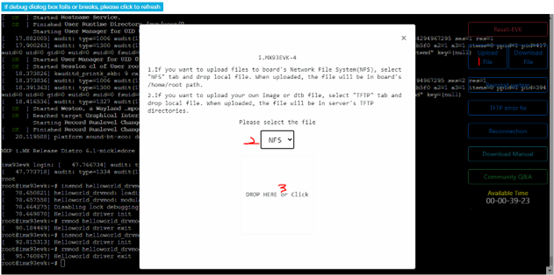

在4中编译出了关于mutex应用的内核驱动程序07_process_state.ko，通过一次点击下图中的1，2，3位置，然后切换到本地对应的文件目录上传。

6. 运行字符驱动模块

在执行下面的操作前要先使能串口终端的log打印，否则会看不到串口终端打印信息：

root@imx93evk:~# echo 8 > /proc/sys/kernel/printk

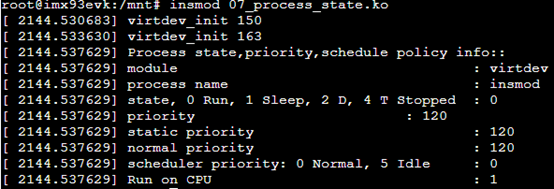

执行insmod命令加载模块，可以看到log里打印出了进程状态、优先级、调度策略等信息：

insmod 07_process_state.ko

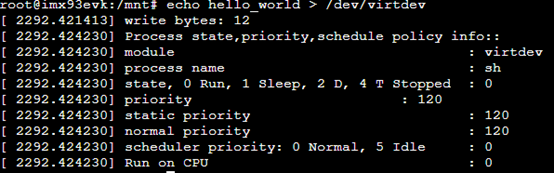

当向内核模块写入字符串，可以看到sh进程在工作，并打印了相关信息：

echo hello_world > /dev/virtdev

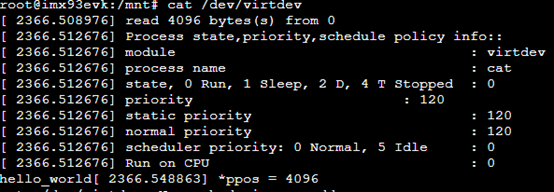

然后读取刚才写入的信息时，可以看到cat进程的相关信息，log如下：

cat /dev/virtdev
