云实验室ARM64开发板上运行最简单驱动程序

1.      在实验本节代码前,准备环境一个ubuntu物理机或者虚拟机,下载并使能交叉编译工具链,然后编译好内核源码,参考《编译内核镜像并在云实验室开发板运行》开始第一个内核模块编写和编译运行。

2.      开始第一个内核模块编写和编译运行

       在你要写代码的目录下用touch新建两个文件,一个源码文件,一个Makefile。如下:

   ~/linux_driver/01_hello$ touch helloworld_drvmod.c
   ~/linux_driver/01_hello$ touch Makefile
   ~/linux_driver/01_hello$ vim helloworld_drvmod.c

       将下面的代码复制到helloworld_drvmod.c, 如下:

  /*
  * Copyright 2024 NXP
  *
  * SPDX-License-Identifier: BSD-3-Clause
  */
  #include <linux/init.h>
  #include <linux/kernel.h>
  #include <linux/module.h>
  MODULE_LICENSE("MIT/GPL");
  MODULE_AUTHOR("Cloud Lab");

  static int __init helloworld_drvmod_init(void)
  {
        printk(KERN_INFO "Helloworld driver init\n");
        return 0;
  }

  static void __exit helloworld_drvmod_exit(void)
  {
        printk(KERN_INFO "Helloworld driver exit\n");
  }

  module_init(helloworld_drvmod_init);
  module_exit(helloworld_drvmod_exit);


       同时编写Makefile:

  ~/linux_driver/01_hello$ vim Makefile

       输入如下内容:

  PWD    := $(shell pwd)
  KERDIR := /home/test/kernel_build/linux-imx
  obj-m += helloworld_drvmod.o

  all:
          make -C $(KERDIR) M=$(PWD) modules
  clean:
          make -C $(KERDIR) M=$(PWD) clean

3.     编译

        输入如下命令进行编译:

  ~/linux_driver/01_hello$ export CROSS_COMPILE=~/toolchain/arm-gnu-toolchain-13.3.rel1-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu-
  ~/linux_driver/01_hello$ export ARCH=arm64
  ~/linux_driver/01_hello$ make

       编译完成后,当前目录下会有如下文件:

  ~/linux_driver/01_hello$ ls
  helloworld_drvmod.c   helloworld_drvmod.mod    helloworld_drvmod.mod.o  Makefile       Module.symvers
  helloworld_drvmod.ko  helloworld_drvmod.mod.c  helloworld_drvmod.o      modules.order


4.      替换云实验室开发板镜像并重新启动

       根据《编译内核镜像并在云实验室开发板运行》替换dtb和image,这里仍然需要这一步,因为内核模块在加载时需要和内核编译版本相匹配。

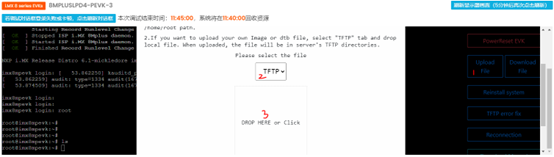

       上传并替换云实验室板子的dtb和Image,依次点击用户网页端下面1,2,3的位置,在点击位置2时,选择TFTP,点击3后选择文件~/kernel_build/linux-imx/arch/arm64/boot/dts/freescale/imx8mp-evk.dtb和~/kernel_build/linux-imx/arch/arm64/boot/Image。

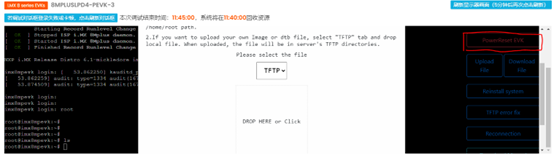

       上传成功后,点击下方PowerReset EVK按钮,重启开发板。



       至此,开发板开始运行自己修改编译的linux镜像。

5.      上传自己编译的驱动模块

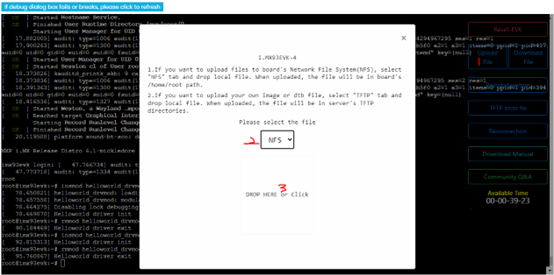

        在4中编译出了第一个内核驱动程序helloworld_drvmod.ko,通过一次点击下图中的1,2,3位置,然后切换到本地对应的文件目录上传。



6.      运行驱动模块

       执行insmod加载模块,然后执行rmmod卸载模块,log如下,可以看到当加载时,打印出了helloworld_drvmod_init里的log, 当卸载时打印出了helloworld_drvmod_exit里的log,执行加载卸载可以多次执行,也没有问题。

  root@imx93evk:~# insmod helloworld_drvmod.ko
  [   78.650821] helloworld_drvmod: loading out-of-tree module taints kernel.
  [   78.657558] helloworld_drvmod: module license 'MIT/GPL' taints kernel.
  [   78.664275] Disabling lock debugging due to kernel taint
  [   78.669870] Helloworld driver init
  root@imx93evk:~# rmmod helloworld_drvmod.ko
  [   90.184469] Helloworld driver exit
  root@imx93evk:~# insmod helloworld_drvmod.ko
  [   92.815313] Helloworld driver init
  root@imx93evk:~# rmmod helloworld_drvmod.ko
  [   95.760867] Helloworld driver exit
